SuperSprings Overload Truck Springs Fit Chart and Order Page

Locate the SuperSprings
Overload Truck Springs part number for your
vehicle in the chart below.

Stop your truck from sagging with a load.

Dimensions of
springs, categories and install instructions
at the bottom of the page.

Note: where Mounting Kit is required, it will be added to order in shopping cart

 “FREE !” Shipping in the Continental States

All SuperSprings are sold in pairs for the rear axle. The price is for 2 SuperSprings.

(2nd part # is the heavy duty or extra heavy duty spring)

** RATING IS TOTAL OF VEHICLE PAYLOAD PLUS SUPERSPRING CAPACITY  –
NEVER EXCEED VEHICLE GVWR.

Click Product Finder Below For The Best Truck FIT

Email Questions problems call 303-883-1300

Safe & secure website ordering

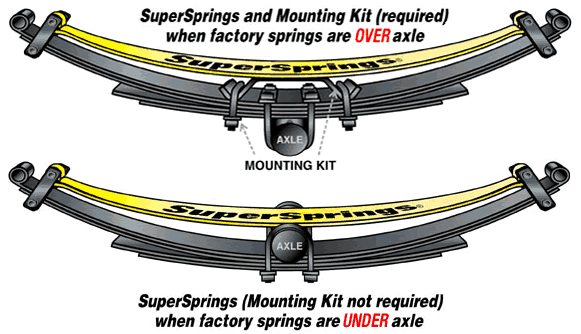

Some applications use Poly Spring Pads instead of Mounting Kits. Read more…

Included with SSA10, SSA12, SSA13,
SSA15, SSA16 &
SSA17, SSA21, SSA22, SSA23, SSA24, SSA25, SSA26

Buy Mounting Kit MT-KT separately.

Springs can be complicated. If you need help call me and we’ll help fit your truck. 303-883-1300
Ask for Mr.Truck

GENERAL MOTORS Chevy and GMC YEAR

PART #
Click for price & to order below


MOUNTING KIT REQ’D
RATING
SPECIAL INSTRUCTIONS

C/K 1500 1/2 ton

1973-87 SSA5
$323.10


SSA8
$369.90
Yes 2000, 3000 lbs Use SSA8 for HD use

C/K 1500 1/2 ton
(C/K changed to 2×4,4×4 in 1999)

1988-99

SSA6 $323.10
or

SSA9
$369.90

YES

2,000, 3,000 lbs.

Use SSA9 for HD use


C/K 1500 1/2 ton

2000-2016 SSA5
$323.10

SSA8
$369.90
Yes 2000, 3000 lbs Use SSA8 for HD use
 Quadrasteer And 1500 HD

2001-2003

SSA10
$401.40

NO

 4,000 lbs.

 C10, 3/4 ton

1973-86

SSA8
$369.90

SSA12
$439.20

YES

3,000 lbs.
5000 lbs

Special ord.-Ext.u-bolts may be
reqd.


C/K 3500 1 ton
1973-91

SSA8
$369.90

SSA12
$439.20

YES  3,000, 5,000 lbs.
C/K  2500 3/4
TON, 3500 1 TON
1988-00

SSA16
with Polypad $421.20


SSA13 with
Polypad  $499.50

NO 3,000, 5,000
lbs.
Use SSA13 for
HD use
C/K
HD 2500, 3500
2001-2010

SSA15
$457.20

SSA10
$401.40
for 3500 Dually

YES SRW

NO for  Dually

 5,000,
4,000 lbs.
 Use SSA15 for
Single Rear Wheel
C/K
HD 2500, 3500 SRW and Dually
2011-2016
SSA16
with Polypad $421.20


SSA13 Heavy Duty with Polypad  $499.50
NO, comes with Polypad
4,000 lbs.
5000 lbs

 C/K
3500 1 ton* HD,WT, UT, Cab Chassis
1991-02

SSA22 with Polypad $471.60

NO, comes with Polypad  5,000 lbs.
 C3500
HD*
2007-2010

SSA23
$471.60

Polypad
included
  5,000 lbs. Trim rear
shackle legs for upper bolt
C4500/C5500 2003-2010

SSA22 with Polypad $471.60
SSA17 with Polypad $539.10

NO  5,000 lb
6,000
lb

Poly Spring Pad
TAHOE, YUKON 92-1999 SSA5
$323.10 or


 SSA8
$369.90
YES 2,000, 3,000
lbs.
Use SSA8 for
HD use
YUKON XL 3/4
TON
92-2015 SSA8
$369.90
YES 3,000 lbs.
AVALANCHE 3/4
TON
98-2013
SSA8
$369.90
YES 3,000 lbs.
S-10/Sonoma  PICKUP 1978-03 SSA2
$314.10 or


 SSA7
$369.90
NO 1,800,
3,000 lbs.
Use SSA7 for
HD use
COLORADO,
CANYON and H3 Hummer
04-2012 SSA3
$323.10
NO 1,800 lbs. (short
shackles to front)
S-10 BLAZER,
JIMMY, BRAVADA
92-02 SSA3
$323.10
NO 1,800 lbs. Yellow Bumper
needs removal
DENALI,
ESCALADE
96-06 SSA5
$323.10 or


 SSA8
$369.90
YES 2,000, 3,000
lbs.
Use SSA8 for
HD use
SUBURBAN 1500
(if rear a/c use
SSA7)
90-01  SSA7
$369.90


SSA8
$369.90
YES 2,000, 3,000
lbs.
Use SSA8 for
HD use
SUBURBAN 2500
90-2015 SSA8
$369.90
YES MXKT 3,000 lbs.  Avoid
rear AC lines
G-1500
SAVANNAH, EXPRESS VAN
(VAN CONVERSION)
96-2015
SSA14
$369.90
YES 3,000 lbs.
G-1500
SAVANNAH, EXPRESS VAN
1996-2013 SSA5
$323.10 or


 SSA8
$369.90
YES 2,000, 3,000
lbs.
Use SSA8 for
HD use
G-2500 VAN 1996-2013

SSA8
$369.90


SSA12
$439.20


YES 2,000, 3,000
lbs.
G-3500 VAN 1973-95

SSA8
$369.90


SSA12
$439.20

YES 3,000, 5,000
lbs.
G-3500 VAN 96-2010 SSA12
$439.20

YES 3,000, 5,000
lbs.
Express 139″
WB Cutaway
06-2016

SSA16
with Polypad $421.20


SSA13
 with
Polypad  $499.50

NO 3,000, 5,000
lbs.

SSA13 for HD.Check for freeboard
Express 159″
WB Cutaway
2006-2016

SSA23 $471.60

NO 3,000
lbs.
ASTRO, SAFARI
VAN (multi-leaf)
1996-05 SSA2
$323.10 or

SSA7
$369.90
YES 1,800, 3,000
lbs.
(Special Short
shackles to rear)
W-Series LCF
3500/4500 (for 08-09 models remove front spring-clip)
2000-2011
SSA22 with Polypad $471.60
NO 8000 lbs (08-09 Diesels
require mod. to PSP1
DODGE AND CHRYSLER

 2500/3500 trucks
2002 & older need the mounting kit without factory “camper package” which is the top leaf overload spring.
Dodge 2500 trucks
2003-2005 need the mounting kit.
Dodge 3500 trucks
2003-2005 don’t need the mounting kit.
Using the appropriate part # below will work with normal loads.
Email me with questions.
Mounting Kit
if you didn’t order with your SuperSprings,
click here..


 “FREE !” Shipping
in the Continental States

D150, W150 1972-93 PART #
Click for price & to order below


SSA2
$323.10 or


 SSA7
$369.90
YES 1800, 3,000
lbs.
Use SSA7 for
HD use
D250, W250,
D350, W350
1972-93
SSA22 with Polypad $471.60
NO 4,000
lbs.
RAM 1500 1/2
ton pickup
1994-02 SSA5
$323.10 or


 SSA8
$369.90
YES 2,000, 3,000
lbs.
Use SSA8 for
HD use
RAM 1500 1/2
ton pickup
2003-08 SSA6 $323.10
or


SSA9
$369.90
YES 2,000, 3,000
lbs.
Use SSA9 for
HD use

RAM 1500 1/2
ton  Heavy Loading
2009-2016 SSC50 $456.30 NO 2,000 lbs. Rear Coil
Springs replacement
RAM 2500, 3/4
Ton  (with factory overload)
1994-02 SSA22 with Polypad $471.60 NO  3,000
lbs.
RAM 2500, 3/4
Ton  (no factory overload)
1994-02 SSA22 with Polypad $471.60 NO 3,000 lbs.
RAM 2500, 3/4
TON PICKUP

(with factory overload)
2003-13
SSA10
$413.10

with Polypad

or

SSA23
$449.10

NO 3,000, 5,000
lbs.
RAM 2500, 3/4
TON PICKUP
(no
factory overload)
2003-13
SSA10
$413.10

or
SSA15
$443.70
YES 3,000, 5,000
lbs.
RAM 3500, 1
TON PICKUP
1994-02 SSA22 with Polypad $471.60 NO 3,000 lbs.
RAM 3500, 1
TON PICKUP

(no factory overload) SRW
2003-10 SSA10
$413.10

SSA15
$457.20
NO  4,000-5000 lbs. Use SSA15 for
HD use
RAM 3500, 1
TON  PICKUP

(with or without factory overload)
2003-16 SSA23
$471.60
NO  5,000  lbs.
RAM 3500, 1
TON  Cab & Chassis
2003-16 SSA24
$539.10
NO  5,000
plus lbs.
    Commercial
Application Only (loaded all the time)
RAM 4500/5500 Sterling 45-55
2007-16
SSA23
$471.60
NO  6,000 lbs.
and above

DAKOTA PICKUP
2WD
1986-04 SSA2
$314.10
NO 1,800 lbs
DAKOTA PICKUP
4WD
1986-04 SSA2
$323.10
YES 1,800 lbs
DAKOTA PICKUP all 2005-09 SSA2
$323.10 or


 SSA7
$369.90
YES 1,800,
3,000 lbs.
Use SSA7 for
HD use
DURANGO 1997-03 SSA3
$323.10
NO 2,000 lbs.
(short shackle up front)

CARAVAN, TOWN
AND COUNTRY
1987-95 SSA2
$323.10
YES 1,800 lbs.
CARAVAN, TOWN
AND COUNTRY
1996-04 SSA5
$323.10
NO 2,000 lbs.  Do not
use with rear AC vans
DODGE VAN
B100-150, 1500
1970-04 SSA2
$323.10
or

 SSA7
$369.90
YES 1,800, 3,000
lbs.
Use SSA7 for
HD use
DODGE VAN
B200-250, 2500
1970-04  SSA7
$369.90


SSA11 $439.20
YES 2,000, 3,000#’s Use SSA11 for
HD use
DODGE VAN
B/300-350,
3500 / 15 SEATER VAN
1970-04 SSA8
$369.90

or

SSA12
$439.20
YES 3,000 5,000 lbs. Use SSA12 for
HD use
DODGE
SPRINTER 2500
03-2009
SSA11 $439.20
YES  3,000
lbs.
DODGE
SPRINTER 3500 3-leaf
03-2009  SSA12
$439.20
 YES  3,000 lbs (square
shackle to front)

FORD

 F250/350 1999 & newer with factory “camper package”  which is the top overload leaf spring and anti-sway bar, don’t need mounting kit.
Ford F250 trucks 1997 & older need the mounting kit.
Ford F350 trucks 1997 & older don’t need the mounting kit.


The New Ford 2008 F250-450 has 8
inch longer rear leaf springs. Can you say “SAG”, but we have
SuperSprings for the 2008 Fords.


 “FREE !” Shipping in the Continental States

FORD – F150 (dual gas tanks only) 1986-97 PART #
Click for price & to order below


SSA7
$369.90
YES 3,000
F250, F350
(dual gas tank models only)
1986-97 SSA7
$369.90
or

 SSA12
$439.20
NO 3000, 5000 Use SSA12 for
HD use
Ford F-150
and Light Duty F-250 PICKUP (6200-8200 GVWR)
1973-201573-2008 SSA5
$323.10 or


 SSA8
$369.90

YES 2,000, 3,000
lbs.
Use SSA8 for
HD use
Ford F-150
and Light Duty F-250 PICKUP (6200-8200 GVWR)
2009-2016  SSA28
$396.90

NO  3,000
lbs.
For heavy duty
use, includes mounting pad
F250-350 PICKUP
Heavy-Duty
1997 and older SSA9 $369.90
or


SSA13
with Polypad

 $476.10
NO 3,000, 5,000
lbs.
Use SSA13 for
HD use
F-250, F-350, Super Duty 1999-07
SSA16 $421.20 with factory top
overload


SSA13  with Polypad $499.50

no factory overload
NO 3,000,
5,000 lbs.
Super Duty F250, F350
2008-2010

SSA15
without factory overload
$457.20

SSA10
with factory overload
$413.10

NO  4,000 lbs.
and above
Super Duty F250, F350 With
factory top overloads (camper package)
2011-2016

SSA16 $421.20 with factory top
overload

SSA13  with Polypad $499.50
with top factory overload

NO 3,000 for
SSA16
 5,000 lbs.
for SSA13
Square shackle to the front, PSP-7
Super Duty F250, F350 Without
factory top overloads (camper package)
2011-2016

SSA16
$421.20
without factory top
overload


SSA13 $499.50

without top factory overload

Yes,
$59 mounting kit added to price
3,000 for
SSA16
 5,000 lbs.
for SSA13
 F450
with pickup bed. Longer factory rear springs

2008-2016
SSA22
with Polypad $471.60
NO  4,000 lbs.
F450/550 Cab
& Chassis
99-2014 SSA22
with Polypad $471.60

SSA17
with Polypad $539.10
NO  5,000
#s & above
Use SSA17 for
HD use
RANGER 83-2012 SSA5
$323.10 or


 SSA8
$369.90
YES 2,000, 3,000
lbs.
Use SSA8 for
HD use
BRONCO/BRONCO
ll
1987-96 SSA5
$323.10 or

SSA8
$369.90
YES 2,000, 3,000
lbs.
Use SSA8 for
HD use
EXPLORER-MOUNTAINEER 1995-01 SSA3
$323.10
NO 2,000 lbs.
(short shackle up front)
SPORT TRAC
2×4/4×4
1998-05 SSA3
$323.10
NO 2,000 lbs.  (short
shackle up front)
E-150 1/2 TON VAN 1975-2007  SSA8
$369.90
YES 3,000
lbs.
E-150 1/2 TON VAN 2008-13 SSA8 $369.90 NO 3,000
lbs.
E-250  3/4 TON VAN 1975-2007 SSA8
$369.90

or
SSA12
$439.20
YES 3,000, 4,000
lbs.
Use SSA12 for
HD use
E-250 3/4 TON
VAN
2008-2016 SSA8
$369.90

or

SSA12
$439.20
NO 3,000, 4,000
lbs.
Use SSA12 for
HD use
E-350 1 TON
VAN
1975-2007 SSA8
$369.90

or

SSA12
$439.20
NO 3,000, 5,000
lbs.
Use SSA12 for
HD use
E-350
Super Duty van
2008-2016 SSA12
$439.20
NO 4,000
lbs.
E-350 Cutaway
Box van
92-2016 SSA12
$439.20
or


SSA22 with Polypad $471.60
NO 4,000, 5,000
lbs.
E-350/450 Class C
RV
01-2016

SSA22 with Polypad $471.60

NO  5,000 lb
6,000
lb

Poly Spring Pad
JEEP
CHEROKEE 1980-01 SSA1
$323.10
YES 1,800 lbs. (Short
shackles to rear)
MERCURY
MOUNTAINEER 1995-01 SSA3
$323.10
NO 2,000 lbs.
ISUZU, MAZDA, NISSAN, TOYOTA
ISUZU PICKUP 1991-04 PART #
Click for price & to order below


SSA2
$314.10
NO 1,800
ISUZU RODEO 1991-98
SSA3
$323.10
NO 2,000 lbs.  (short
shackle up front)
ISUZU
NPR/NPR-HD
2000-2016
SSA22 $471.60
NO 5,000 lbs.
MAZDA PICKUP
– B Series
1994-08
SSA5
$323.10 or


 SSA8
$369.90
YES if axle is
below spring
2,000, 3,000
lbs.
Use SSA8 for
HD use
MAZDA NAVAJO 1991-98
SSA3
$323.10
NO 2,000 lbs.   (short
shackle up front)
NISSAN PICKUP 1968-99
SSA2
$314.10

NO 1,800 lbs.
NISSAN
FRONTIER PICKUP
1998-04
SSA2
$314.10


 SSA7
$369.90

NO

1,800, 3,000 lbs. Use SSA7 for
HD use
NISSAN
FRONTIER PICKUP
05-2015
SSA1
$323.10
YES 2,000 lbs. (square
shackle to rear, use upper hole)
NISSAN XTERRA 00-2007
SSA1
$323.10
NO 2,000 lbs.

NEW SuperSprings special NISSAN TITAN overload and torsion stabilizer.
04-2015 SSA20 $498.60 includes special mounting kit Included  3,000



Spring bumper bolt
in picture on rear factory spring needs removed
TOYOTA
PICK-UP 4×4
1980-94
SSA1
$323.10
YES 1,800
TOYOTA TACOMA
2×4
1980-94
SSA1
$323.10
NO 1,800 lbs.
TOYOTA TACOMA
2×4
1995-00
SSA2
$314.10



 SSA7
$369.90
NO 1,800 lbs.3,000 lbs.
(short shackle up front)
TOYOTA TACOMA
2×4
01-2016
SSA1
$323.10



 SSA7
$369.90
NO 1,800-3,000 lbs. (short shackle
up front)
TOYOTA TACOMA  or PRERUNNER (short shackle in rear) 1995-04
 SSA18
$369.90
 special
mounting kit included
2,000 lbs. Needs Bump
Stop Cut Off 1″
TOYOTA TACOMA  or PRERUNNER (short shackle in rear) 2005-09
SSA19 $369.90
 special
mounting kit included
2,000 lbs. Needs Bump
Stop Cut Off 1″
TOYOTA TUNDRA
1998-06
SSA8
$369.90
YES  3,000
lbs.
Needs Bump
Stop Cut Off 1″
TOYOTA TUNDRA

07-2016
SSA4
$489.60
Mounting Kit
included
 3000
lbs.
Needs Bump
Stop Cut Off


TOYOTA
STEPSIDE TUNDRA
2003-06
 SSA8
$369.90
YES  3,000
lbs.
Needs Bump
Stop Cut Off 1″
TOYOTA T100 1993-98 SSA2
$323.10 or



 SSA7
$369.90
YES for 4×4 1,800,
3000 lbs.
Use SSA7 for
HD use


 “FREE !” Shipping in the
Continental States

Mounting Kit
if you didn’t order with your SuperSprings,

click here..

* RATING IS TOTAL OF VEHICLE PAYLOAD
PLUS SUPERSPRINGS CAPACITY – NEVER EXCEED VEHICLE GVWR
Technical Support: 866-898-0720 x 112 MrTruck Support Line

Notes to the above:
August-04
1.Chevy Colorado – SSA3 short shackle up
front- limited space due to chassis frame. Remove protruding plastic
nipple underside from noise suppressor to allow more room for roller to
move. Z71 Off road package has more space – here our SSA2 or SSA7 could
also work.
2. Astro Van up to 2004 – SSA2 or 4
short shackle in rear (short shackle with extended hole – due to leaf
clip that extends above the top leaf)
3.Tacoma 4×4 – SSA18 This lifted the
tail-end by 1.25 inches unloaded. With 1000lbs it dropped back down two
inches ie.0.75 inches below original empty ride height. Drop muffler
hanger to lower bolt hole position on bracket if necessary. Trim back
plastic nipple for front roller. Rollers catch leaves 2F/2B.
4.Dodge Caravan – from 2001 the spring
pack was moved to above the axle but no mounting kit is required as
there is a platform their to support our spring.
5.Chevy G20 Van – use SSA7 and a
mounting kit.
6.Mercury Villager Van – use SSA2 and a
mounting kit.
7.Dodge Ram 1500/2500- 1985 to 1994 old
style use SSA7 and a mounting kit instead of SSA5 or 8 and mounting kit.
8.Tacoma 2×4 2005 -SSA1 with front
roller outside front clip on second leaf short section and rear roller
inside rear clip also second leaf.


email

ph. 303-883-1300

All SuperSprings are sold in pairs for the rear axle. The price is for 2 SuperSprings.

If you are trying to size a spring not listed above, measure your rear leaf springs eye to eye and subtract 10 inches. We can help figure the thickness you need. If your factory springs sit on top of your trucks axle, you’ll need the Mounting Kit.
Find your trucks part number above:


email

Part Number

Dimensions

SS-A1

38″ L x
2.5″ W x .323″

SS-A2

40″ L x
2.5″ W x .323

SS-A3

42″ L x
2.5″ W x .360

SS-A5

44″ L x
3″ W x .360

SS-A6

47″ L x
2.5″ W x .401

Heavy Duty Use

SS-A7

40″ L x
2.5″ W x .401″

SS-A8

44″ L x
3″ W x .447

SS-A9

47″ L x
3″ W x .447

SS-A10

52″ L x
3″ W x .449

Specialist / Extra-Heavy
Duty Use

SS-A11

40″ L x
3″ W x .447″

SS-A12

44″ L x
3″ W x .558

SS-A13

47″ L x
3″ W x .625

SS-A14

47″ L x
3″ W x .447

SS-A15

51″ L x
3″ W x .625

SS-A16

47″ L x
3″ W x .447

SS-A17

42″ L x
3″ W x .998

SS-A18

45″ L x
3″ W x .360

SS-A20

47″ L x
3″ W x .447

SS-A21

47″ L x
3″ W x .946


SSA22


43″L x
3″W x .558″      with PSP


SSA23


49″L x
3″W x .558″      with PSP


SSA24


51″L x
3″W x 1.116″*      with PSP


SSA25


43″L x
3″W x .625″      with PSP

SSA26

44″L x
3″W x 1.25″*       with PSP

MT KT

Mounting Kit is used when
leaf springs are located above the axle



EASY INSTALLATION

Every SuperSprings installation should be completed in less than an hour. Most will take 30 minutes or less.

The tools required to complete your installation are:

  • 1 – Jack – capable of taking the weight off the rear suspension
  • 1 – Jack stand
  • 2 – ¾” wrench – for securing all SuperSprings hardware
  • 1 – C Clamp

To complete your installation no specialty suspension knowledge is required. However, an understanding of basic automotive repair or maintenance, combined with some solid common sense and the ability to read and follow our step-by-step instructions will ensure that the installation is completed correctly, safely and in a timely manner. Should you not feel qualified to completethis task your local mechanic should be able to do so or a nominal (usually one hour shop rate) fee. Also, please make use of our toll free tech support line for any installation questions you have.

For your spring specific installation instructions please match up your SuperSprings model number with the appropriate installation instructions listed below. Again, if for any reason you are unclear about any portion of our instructions, call our toll free tech line @866-898-0720





The airless bag to prevent your sag and improve your ride! For trucks with campers, trailers,
commercial bodies and all other loads.
.

SumoSprings
(
the
world’s first and only “airless airbag” suspension
system for trucks and vans)

are manufactured from an advanced high grade, closed cell polyurethane foam; ideal for the tough truck underbody environment. The product underwent testing in extreme conditions ranging from blistering US desert summer days to the frigid Canadian winter nights. Combining heavy loads with extreme terrain and temperature conditions over eighteen months of testing ensures their performance in any similar conditions our customers might encounter.

More…





SuperSway-Stops,
help for your slide-in camper with air bags,
click.
Use your
factory overload springs
See Video

SuperSway-Stops to Use with your Air
Bags Click for more…



Back to SuperSprings page

Log in with your credentials

or

Forgot your details?
