SumoSprings are
SUPER for Front, Rear
and Air Bag Replacement
No leaky air, no frozen air lines, no
squeaky overload springs, just a better ride for your truck
or RV

|
The
airless bag to prevent your sag
and improve your ride! For
trucks with campers, trailers,
commercial bodies and all other loads.

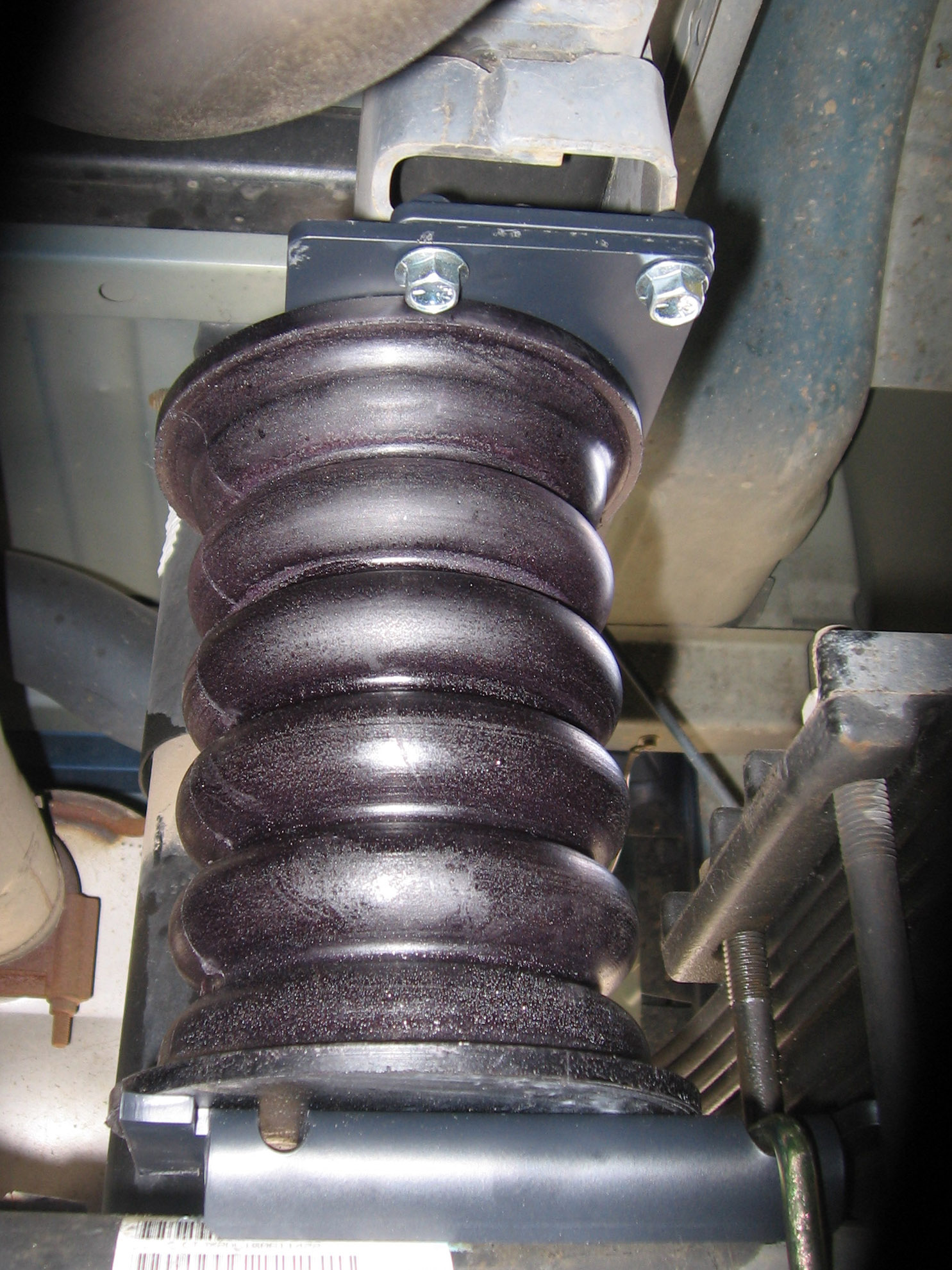

Rear SumoSprings
Responding to customer requests and
feedback was the motivation for producing the world’s
first and only “airless airbag” suspension system for
trucks and vans –SumoSprings.
SumoSprings
are manufactured from an advanced high grade, closed
cell polyurethane foam; ideal for the tough truck
underbody environment. The product underwent testing in
extreme conditions ranging from blistering US desert
summer days to the frigid Canadian winter nights.
Combining heavy loads with extreme terrain and
temperature conditions over eighteen months of testing
ensures their performance in any similar conditions our
customers might encounter.
- Highest Quality
Polyurethane Available Delivering Unsurpassed
Dynamic Performance
- High Compression
Rate with Full Memory Rebound
- Compressible up to
70% of their Original Height Making them Ideal for
High Dynamic Loading Versus the Typical 20%
Compression for Material used by Other Manufacturers
- Extremely Durable
Material with Excellent Abrasion, Cut Resistance and
Low temperature Flexibility
- Engineered Surface
Profile Provides Minimal Transverse Expansion -
Unlike an Air Inflated Product which Expands
Laterally when Compressed, the SumoSprings
Compresses in on Itself when Under Load
- Leak Proof, Rupture
Proof, Maintenance Free Load Support
- Capable of
Supporting Loads from 3,000 to 10,0000 lbs. - Load
Rating is per Pair - Never Exceed Your Vehicle's
Gross Vehicle Weight Rating (GVWR)
- These Variable Rate
Springs Provide Better Handling and Stabilization
for Slide-In Campers, Trailer Towing and Commercial
Applications
- Bonded to both the
top and Bottom Mounting Plates so they Enhance the
Vehicle Suspension whether Riding Empty or Carrying
the Maximum Load
- Supplied with
No-Drill Steel Brackets and Mounting Hardware for a
Quick, Easy Installation
SumoSprings are manufactured in a
propriety multi-stage hot casting process resulting in a
unique closed cell microcellular foam with the following
characteristics.
1. Minimal expansion under
loading, will work in confined spaces.
2. Compressible to 70% and
extendable to 30% of its unloaded height with full
memory rebound
3. Excellent abrasion resistance,
highly resilient to oils, salts and UV rays.
4. No possibility of a system
failure due to leaking air, No air lines or
compressors.
5. Closed cell foam wont rupture
and can be punctured without loss of performance
6. Indifferent to weather
extremes, can handle temperatures ranging from - 40
degrees to + 200 degrees Fahrenheit.
Installed SumoSprings offer the
following benefits to our customers
1. Zero maintenance required ever.
2. This aligns with our company
motto of “fit it and forget it” for each of our
products
3. The microcellular foam material
delivers a progressive, cushioned load engagement
producing a smooth, comfortable ride for the driver.
4. SumoSprings kits have all been
designed to be “no-drill” installation.
5. All kits ship fully assembled
in the box to facilitate a quick, easy, bolt-on
installation.
6. Levels your load and maintains
front end alignment for safer driving.
7. Reduces sag, bounce, sway and
bottoming out. 8. All proudly made in the USA.
From listening to our customers’
feedback, SuperSprings International engineers designed
the SumoSprings air spring to fit most competitors
existing airbag bracket systems with very little or no
modification required at all. If you need to replace
your damaged or leaking airbags contact SuperSprings for
your leak-proof, maintenance free alternative.
Replacement air bag SumoSprings below
Simply “Fit and forget “your
SumoSprings today.
|
Rear SumoSprings> Fit
Chart
|
Make |
Year |
Part # |
| FORD |
|
|
| Pick Up Truck |
|
MrTruck
Prices |
| F250/F350 SUPER DUTY (2x4 & 4x4)
- No 5th wheel |
1999-2010 |
SSR-101
$589.50 |
| F250/F350 SUPER DUTY (2x4 & 4x4)
- No 5th wheel |
2011 |
SSR-103
$589.50 |
|
F250/F350 SUPER
DUTY (2x4 & 4x4) - with 5th wheel |
1999-2010 |
SSR-102
$589.50 |
| |
|
|
| Ford F-53 Class A Motor Home
(16K-22K GVWR) |
1999-2009 |
SSR-180
$625.50 |
| Ford F-53 Class A Motor Home
(16K-22K GVWR) Coming
soon |
1990-1998 |
SSR-181
$625.50 |
| (Excludes Thor models) |
|
|
| GENERAL MOTORS |
|
|
| 2500 Suburban, 2500 Yukon |
2000-2010 |
SSR-202
$169.20 |
| Pick Up Truck |
|
|
| 2500 SIERRA, SILVERADO, 2500HD
(2x4 & 4x4) |
2001-2010 |
SSR-201
$589.50 |
| 3500 SIERRA, SILVERADO, 3500HD
(2x4 & 4x4) |
2001-2010 |
SSR-201
$589.50 |
| |
|
|
| Workhorse W20, W22, W24 Class A
Motor Home |
2001-2009 |
SSR-280
$625.50 |
| DODGE |
|
|
| Pick Up Truck |
|
|
| RAM 2500 (2x4 & 4x4)
RAM 3500 (2x4 & 4x4) |
2002-2011 |
SSR-301
$589.50 |
| |
|
|
| JEEP |
|
|
| JK WRANGLER |
2007-2010 |
SSR-401
$134.10 |
| |
|
|
| Replacement Springs - Only |
|
|
| Call SuperSprings tech support for
application and installation information. |
|
SSR-050
$290 |
Both single and dual rear
wheel trucks
Do not exceed GVWR |
|
Front SumoSprings
For trucks with snow plows, winches and
other front-mounted accessories.
Product Description
All
SumoSprings utilize patented micro-cellular
polyurethane foam formulated with exclusive
additives. The resulting combination of exclusive
raw material and engineering design produces a
graduated spring rate curve which results in
progressive compression under load and variable road
conditions. This produces a smooth ride and provides
additional load support.
Features & Benefits
Manufactured in a proprietary
casting process the finished material possesses the
following properties:
· The highest quality polyurethane
available delivering unsurpassed dynamic
performance.
· High compression rate with full
memory rebound.
·
SumoSprings are compressible up to 70% of
their original height making them ideal for high
dynamic loading versus the typical 20% compression
for material used by other manufacturers
· Specifically designed and
formulated for the tough truck underbody environment
· Extremely durable material with
excellent abrasion, cut resistance and low
temperature flexibility.
· Engineered surface profile
provides minimal transverse expansion – unlike an
air inflated product which expands laterally when
compressed, the SumoSprings compresses in on itself
when under load.

· Patent pending
Front SumoSprings
- permits a far smoother load engagement than other
products. More than a mere bump stop, this variable
rate spring with load capacities of up to
3,000
pounds* eliminates the unforgiving “banging” effect
produced by similar front-mounted products.
Front SumoSprings are ideal for snow plow,
winch and heavy duty replacement bumper
applications. They will maintain the original
factory ride and only provide additional support
when needed. The kits ship complete with all
mounting hardware required for a quick, easy
installation - typically less than 30 minutes.
All SumoSprings kits are
manufactured and assembled in the USA.
*Load rating is per pair - Never
exceed your vehicle Gross Vehicle Weight Rating (GVWR)
|
Front SumoSprings > Fit Chart
|
Make |
Year |
2x4 |
4x4 |
|
FORD |
|
|
|
| Pick Up Truck |
|
MrTruck
Prices |
|
| F250 / F350 SUPER DUTY |
1999-2004 |
SSF-101
$169.20 |
SSF-103
$169.20 |
| F250 / F350 SUPER DUTY |
2005-2010 |
SSF-101
$169.20 |
SSF-102
$169.20 |
| Cab & Chassis |
|
|
|
| F350 SUPER DUTY |
1999-2004 |
SSF-101
$169.20 |
SSF-103
$169.20 |
| F350 SUPER DUTY |
2005-2010 |
SSF-101
$169.20 |
SSF-102
$169.20 |
| |
|
|
|
| F 53 Class A Motor Home (16k-22K
GVWR) |
2004-2009 |
SSF-180
$589.50 |
| F 53 Class A Motor Home (16k-22K
GVWR) |
1990-2003 |
SSF-181
$589.50 coming soon |
| |
|
|
|
|
GENERAL MOTORS |
|
|
|
| Pick Up Truck |
|
|
|
| 1500 HD SIERRA, SILVERADO,
DENALI |
1999-2006 |
SSF-201
$127.80 |
|
| 1500 HD SIERRA, SILVERADO
including Classic |
2001-2010 |
SSF-201
$127.80 |
SSF-201
$127.80 |
| SUBURBAN, YUKON XL 2500 |
2000-2010 |
SSF-201
$127.80 |
SSF-201
$127.80 |
| 2500 SIERRA, SILVERADO, 2500HD |
1999-2010 |
SSF-201
$127.80 |
SSF-201
$127.80 |
| 2500 AVALANCHE |
2002-2006 |
SSF-201
$127.80 |
SSF-201
$127.80 |
| 3500 SIERRA, SILVERADO, 3500HD |
2001-2010 |
SSF-201
$127.80 |
SSF-201
$127.80 |
| Cab & Chassis |
|
|
|
| 3500 SIERRA, SILVERADO Single
rear wheel |
2006-2010 |
SSF-201
$127.80 |
SSF-201
$127.80 |
| 3500 HD |
2007-2010 |
SSF-201
$127.80 |
SSF-201
$127.80 |
| |
|
|
|
| Workhorse W20, W22, W24 Class A
Motor Home |
2001-2009 |
SSF-280 Retail $195
MrTruck price $176 |
| |
|
|
|
|
DODGE |
|
|
|
| Pick Up Truck |
|
|
|
| RAM 2500 |
1994-2002 |
|
SSF-302
$169.20 |
| RAM 2500 |
2002-2010 |
SSF-301
$169.20 |
SSF-302
$169.20 |
| RAM 3500 |
1994-2010 |
SSF-301
$169.20 |
SSF-302
$169.20 |
| Cab & Chassis |
|
|
|
| RAM 3500 |
1994-2010 |
SSF-301
$169.20 |
SSF-302
$169.20 |
| |
|
|
|
|
JEEP |
|
|
|
| JK WRANGLER |
2007-2010 |
|
SSF-401
$134.10 |
Do not exceed GVWR
Rear
SumoSprings > Airbag Replacements
|
Leaking Airbags?
Eliminate leaking
airbags by installing replacement SumoSprings
bellows that are LEAK PROOF, MAINTENANCE FREE
and provide you ‘fit it and forget it’ peace of
mind.
SumoSprings
rear suspension systems consist of two primary
components; the steel bracket attachment system
and the microcellular foam airsprings, airbags
or bellows (photo).
SumoSprings
bellows are the world’s first and only
maintenance-free, leak-proof airbags.
Additionally, they have been designed to fit
existing competitive airbag bracket systems as
replacements for ruptured or leaking airbags.
The SumoSprings
bellows are manufactured from patented
microcellular polyurethane foam. The combination
of raw materials and engineering design produces
a smooth ride; provides additional load support;
is LEAK PROOF and completely MAINTENANCE FREE.
The SumoSprings
bellow top plate has a 4-hole drilling pattern
which aligns perfectly with the top bracket of
all the Firestone™ and Airlift™ airbag systems
cross referenced below. The SumoSprings bottom
plate has a centered, single hole. Where this
does not correspond with the existing lower
bracket system a single 7/16” diameter hole will
need to be drilled to complete the installation.
(See notes) Bolts are supplied with the
SumoSprings bellows for attachment to the
existing bracket system.
Firestone™ /
SumoSprings / Airlift™ cross reference sheet.
The
SumoSprings will replace all the Firestone
(Ride-Rite) and Airlift air spring item numbers
listed below with little or no adjustment
required. (See notes) Kit numbers are listed to
more easily cross reference the appropriate air
spring number.
|
Firestone™
|
SumoSprings
|
Airlift™
|
Rear
Kit
# |
Air
Spring
# |
Note
|
Item
# |
Rear
Kit
# |
Air
Spring
# |
Note
|
|
2025
|
6781
|
|
SSR-050
|
57105
|
50284
|
1
|
|
2029
|
6859
|
1
|
SSR-050
|
57125
|
50284
|
1
|
|
2032
|
6859
|
1
|
SSR-050
|
57131
|
50201
|
1
|
|
2040
|
6873
|
|
SSR-050
|
57202
|
50201
|
1
|
|
2061
|
6764
|
1
|
SSR-050
|
57203
|
50284
|
1
|
|
2065
|
6859
|
1
|
SSR-050
|
57208
|
50201
|
1
|
|
2071
|
6781
|
|
SSR-050
|
57212
|
50201
|
1
|
|
2080
|
0335
|
1
|
SSR-050
|
57215
|
50201
|
1
|
|
2085
|
0335
|
1
|
SSR-050
|
57216
|
50201
|
1
|
|
2101
|
6781
|
|
SSR-050
|
57217
|
50201
|
1
|
|
2109
|
6781
|
|
SSR-050
|
57219
|
50201
|
1
|
|
2116
|
6781
|
|
SSR-050
|
57221
|
50201
|
1
|
|
2153
|
6781
|
|
SSR-050
|
57224
|
50201
|
1
|
|
2173
|
6762
|
|
SSR-050
|
57242
|
50251
|
1
|
|
2176
|
6781
|
|
SSR-050
|
57250
|
50201
|
1
|
|
2190
|
6781
|
|
SSR-050
|
57237
|
50201
|
1
|
|
2213
|
6762
|
|
SSR-050
|
57291
|
50201
|
1
|
|
2220
|
6781
|
|
SSR-050
|
57298
|
50201
|
1
|
|
2249
|
6781
|
|
SSR-050
|
57340
|
50251
|
1
|
|
2250
|
6781
|
|
SSR-050
|
57345
|
50229
|
1
|
|
2251
|
6781
|
|
SSR-050
|
57347
|
50201
|
1
|
|
2253
|
6781
|
|
SSR-050
|
57394
|
50201
|
1
|
|
2255
|
6781
|
|
SSR-050
|
|
|
|
|
2264
|
6781
|
|
SSR-050
|
|
|
|
|
2286
|
6781
|
|
SSR-050
|
|
|
|
|
2299
|
6401
|
1
|
SSR-050
|
|
|
|
|
2304
|
6781
|
|
SSR-050
|
|
|
|
|
2330
|
6401
|
1
|
SSR-050
|
|
|
|
|
2350
|
6397
|
1
|
SSR-050
|
|
|
|
|
2355
|
6781
|
|
SSR-050
|
|
|
|
|
2361
|
6397
|
1
|
SSR-050
|
|
|
|
|
2362
|
6781
|
|
SSR-050
|
|
|
|
|
2377
|
6397
|
1
|
SSR-050
|
|
|
|
|
2382
|
6781
|
|
SSR-050
|
|
|
|
|
2384
|
6397
|
1
|
SSR-050
|
|
|
|
|
2398
|
6401
|
1
|
SSR-050
|
|
|
|
|
2400
|
6401
|
1
|
SSR-050
|
|
|
|
|
2403
|
6766
|
2
|
SSR-050
|
|
|
|
|
2404
|
7325
|
1
|
SSR-050
|
|
|
|
|
2407
|
6397
|
1
|
SSR-050
|
|
|
|
|
2425
|
6781
|
|
SSR-050
|
|
|
|
|
2430
|
6397
|
1
|
SSR-050
|
|
|
|
|
2442
|
7325
|
1
|
SSR-050
|
|
|
|
|
2445
|
6397
|
1
|
SSR-050
|
|
|
|
|
2446
|
7701
|
1-2
|
SSR-050
|
|
|
|
|
2447
|
6397
|
1
|
SSR-050
|
|
|
|
|
2450
|
6401
|
1
|
SSR-050
|
|
|
|
|
2452
|
6781
|
|
SSR-050
|
|
|
|
|
2455
|
6781
|
|
SSR-050
|
|
|
|
|
2458
|
6397
|
1
|
SSR-050
|
|
|
|
|
2460
|
6781
|
|
SSR-050
|
|
|
|
|
2478
|
6781
|
|
SSR-050
|
|
|
|
|
2484
|
6781
|
|
SSR-050
|
|
|
|
Note1:
Original Firestone™ and Airlift™ applications
have two 3/8-16” tapped holes in the bottom
bracket plate. Drill one 7/6” diameter hole in
the center of this lower plate to accommodate
the SumoSprings bellow.
Note 2:
Use the 3/8-16” set screw and fender washer in
one of the upper plate holes to prevent
rotation.
SumoSprings Replacement Airspring Item #:
SSR-050 $322 retail MrTruck price:
$290
Click to order
Heavy Duty #: SSR-080 $355 retail
MrTruck price:
$320 Click to
order |
SumoSprings
> Limited Warranty
|
Your
SuperSprings™ product is covered by the
Limited Warranty explained below
that gives you specific legal rights. This
Limited Warranty is the only warranty made
in connection with your suspension
stabilizer, SumoSprings. SuperSprings™
neither assumes nor authorizes any vendor,
retailer or other person or entity to assume
for it any other obligation or liability in
connection with this product or Limited
Warranty.
What is
Covered?
Subject to the terms,
exclusions and limitations herein,
SuperSprings International, Inc. Warrants to
the initial retail or fleet purchaser only
that its SumoSprings suspension stabilizer
shall be free of defects in material and
workmanship for:
Two
(2) years
This Limited Warranty
extends only to the initial retail or fleet
purchaser with respect to use upon the
vehicle the SuperSprings™ product is first
installed. The term of Limited Warranty
shall be measured from the date of purchase.
SuperSprings™ reserves the rights to: (a.)
require claimant’s proof of purchase as a
condition of this Limited Warranty, (b.)
make future revisions to its Limited
Warranty without prior notice. ALL OTHER
EXPRESS OR IMPLIED WARRANTIES INCLUDING
MERCHANTABILITY OR FITNESS FOR A PARTICULAR
PURPOSE ARE HEREBY DISCLAIMED.
What is
Not Covered?
Your Limited Warranty does
not cover any damage arising or related to
any vehicle, product, or component
combination other than the SumoSprings
suspension stabilizer. Your SuperSprings™
Limited Warranty further does not cover
vehicles, products or components supplied by
us or others that SuperSprings
International, Inc determines to have been
damaged by or subjected to:
- Vehicle use in excess of
GVWR combined vehicle weights/ tow ratings
or other OEM design specifications or
limitations.
- Normal wear and tear, deterioration of
spring shape or rating, alteration or
failure to maintain. - Scratches or defects
in product finishes (powder coating, paint,
etc.) or damage due to shipping.
- Misuse, including products used other than
as recommended in the current SumoSprings
application guide or the instructions.
- Racing or other vehicle competitions or
contests. Accidents, impact by rocks, trees,
obstacles or other aspects of the
environment.
Remedy
Limited to Repair / Replacement.
The exclusive remedy
provided hereunder shall, upon SuperSprings
Internationals’ inspection and option, be
either repair or replacement of product or
parts covered under this Limited Warranty.
Customers requesting warranty consideration
should first contact the independent
distributor from whom you purchased your
SumoSprings to obtain a Returned Goods
Authorization number. All removal, shipping
and installation costs are customer’s
responsibility. If a replacement part is
needed before yours can be returned, you
must first purchase the replacement part.
Then, if SuperSprings™ deems your part
warrantable, you will be credited the
purchase price. Your warrantor is
SuperSprings International, Inc. If you
are unable to submit a warranty claim
through your distributor contact
SuperSprings™ customer service at
800-898-0705 or the address indicated below.
Other Limitations
- Exclusion of Damages - Your Rights under
State Law
In consideration of the
purchase price paid, neither SuperSprings
International, Inc. or any independent
SuperSprings™ distributor are responsible
for any installation or removal costs, time
loss, rental costs, or for any incidental,
consequential, punitive or other damages you
or third parties may incur in connection
with any product purchased. Your exclusive
remedy hereunder for covered parts is
repair/replacement as described above.
This Limited Warranty
gives you specific rights. You may also have
other rights that vary from state to state.
For example, while all implied warranties
are disclaimed herein, any implied warranty
required by law is limited to the terms of
Limited Warranty described above. Some
states do not allow limitations of how long
an implied warranty lasts and /or do not
allow the exclusion or limitation of
incidental or consequential damages, so the
limitations and exclusions herein may not
apply to you.
©SuperSprings Int., Inc. 2008. All Rights
Reserved.
|
|
|
